Elkalub
Chemie-Technik and ELKALUB
In 1956, trailblazing high performance lubricants, oil and fuel additives lay the foundation stone for today’s “Chemie-Technik GmbH“. Since focussing on high performance lubricants for industry and craftwork in the 70s, we manufacture our products ourselves and market these under the brand name ELKALUB.
Products
For the various physical circumstances of the areas of application we offer an extensive selection of lubricants in the form of greases and oils.
For lubrication points that are difficult to access, we recommend our greases and oils in a spray form.
Applications
Coming into use for solving demanding lubricant tasks are ELKALUB high performance lubricants: develop and produce for numerous renowned nationally and internationally operating firms and companies in various sectors: printing, food, pharmaceutical, machinery and plant engineering, automobile and tool manufacturing industries.
Service & Advice
Mechanical systems are always a matrix of numerous, physical influencing parameters. Choosing the right lubricant thus often requires comprehensive know-how and many years of experience.
Speak to us about your individual lubricant requirements.
Our technical advisorsare here for you.
High performance lubrication oils and greases, high performance sprays for general industry, printing and paper processing industries, food industry and pharmaceuticals

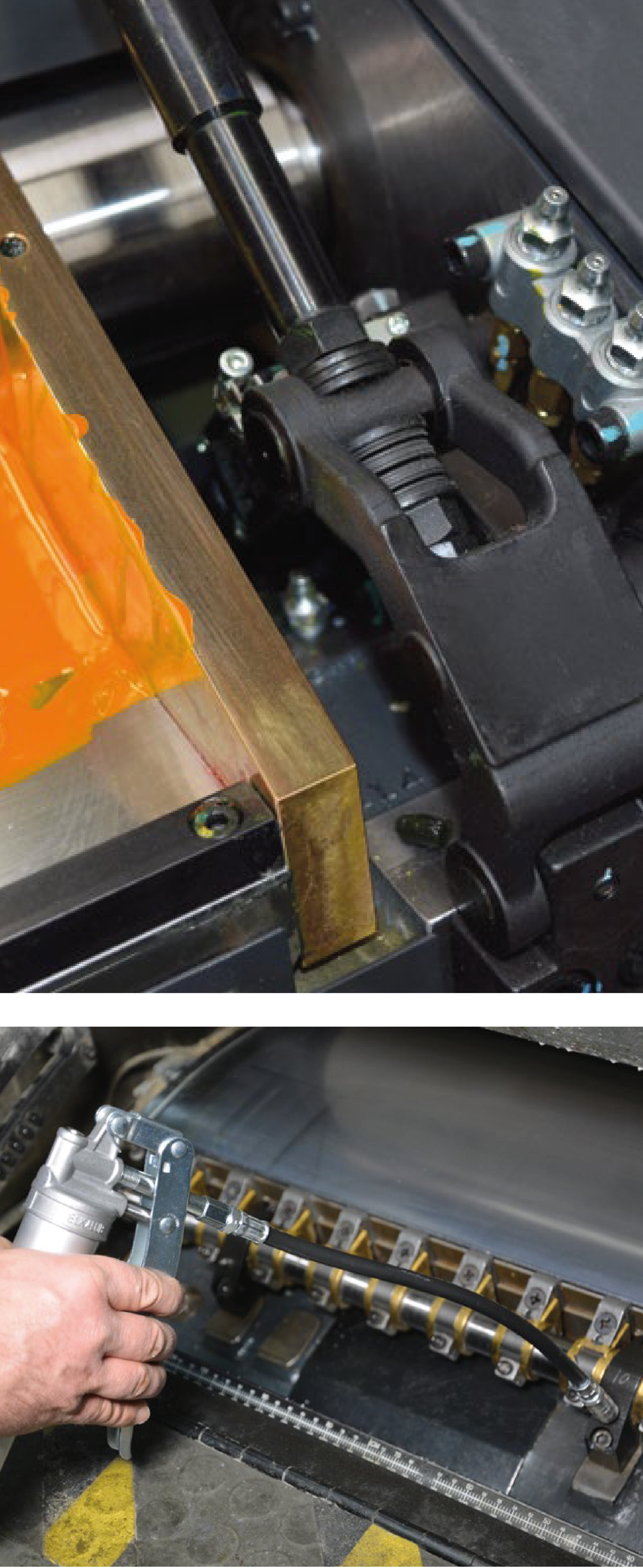

Greases
Name | Application | Characteristics | |
GLS 37/N1 | Heavy Duty Grease | Very pressure and spin-off resistant grease, extremely adhesive. Use: slide bars and cam discs. Contains MoS2. | |
GLS 75/N2 | Universal Grease | Lithium-soap-based EP universal grease for lubricating roller and slide bearings. Adhesive and spin-off resistant. Standard grease for printing machines from Komori. | |
GLS 135/N2(a) GLS 135/N1(b) | Universal Grease | Homogenous, adhesive grease based on mineral oil with lithium-soap. Very well suited to central lubrication units. Standard grease for HD sheetfed machines(a) and web machines from Manroland-Goss(a), (b). | |
GLS 163 | Universal Grease | Polyurea saponified mineral oil grease for lubricating roller and slide bearings and small drives. Very good protection against wear even with high revolutions. Through the dis-tinctive thixotropy, good for poorly sealed bearings. Standard grease for sheetfed printingmachines from KBA and manroland Sheetfed. | |
GLS 361/N1 | H1-Special Grease | H1 special grease with a high proportion of solid lubricants. Good for toothed segments, oscillating movements (e.g. turning drums) and against tribocorrosion. | |
GLS 363/N3 | Solid Universal Grease | Grease for general machine greasing and open lubrication points. Sealing grease for ink ducts. | |
GLS 595/N2 | High Temperature Grease | High temperature grease (up to 250 °C) based on perfluoropolyether. For roller and slide bearings, spindles and guides at adhesive binders, embossing and corrugated cardboard machines. | |
GLS 794/N2 | Sliding and Sealing Grease | Silicone grease for slide lubrication and sealing applications (e.g. ink ducts, coating pans). Adhesive, media resistant and suitable for high temperatures up to 250 °C. Not for bearing lubrication. | |
GLS 962/N2 | High Temperature Grease | High temperature grease (up to 170 °C) based on PAO oil and polyurea thickener.For bearings in pressure vacuum pumps (dry rotors) and fans. | |
GLS 964/N2 | H1-Universal Grease | H1 universal grease for sheeted offset machines from HD, KBA, Komori and manroland and for post press machines (stamping, folding, glue binding andcutting machines …). | |
GLG 16/N0(c) GLG 16/N00(d) GLG 16/N000e) | Special Liquid Gear Grease | Lithium-soap-based liquid gear grease. Very good wear resistance at high load bearing capacity. For use in central lubricant units from manroland Sheetfed(c), Komori(d), e), HD(e), manroland web(e) and KBA Grafitec(e). | |
GLL 10/N1 GLL 10/N2 | Heavy Duty Grease | Lithium-soap-based MoS2 grease with high adhesiveness for heavy loadsin roller and slide bearings as well as open lubrication points. | |
VP 873 | Heavy Duty Grease | High pressure and adhesive grease for roller and slide bearings and open lubrication points. | |
VP 886 | Polyglycol Special Grease | Roller and slide bearing grease on a polyglycol basis. Compatible with NBRand EPDM roller materials. For UV print applications. | |
VP 890 | H1 Liquid Gear Grease | Synthetic polyurea saponified liquid grease with highest wear resistance. For use in central lubricant units from HD and KBA Grafitec. | |

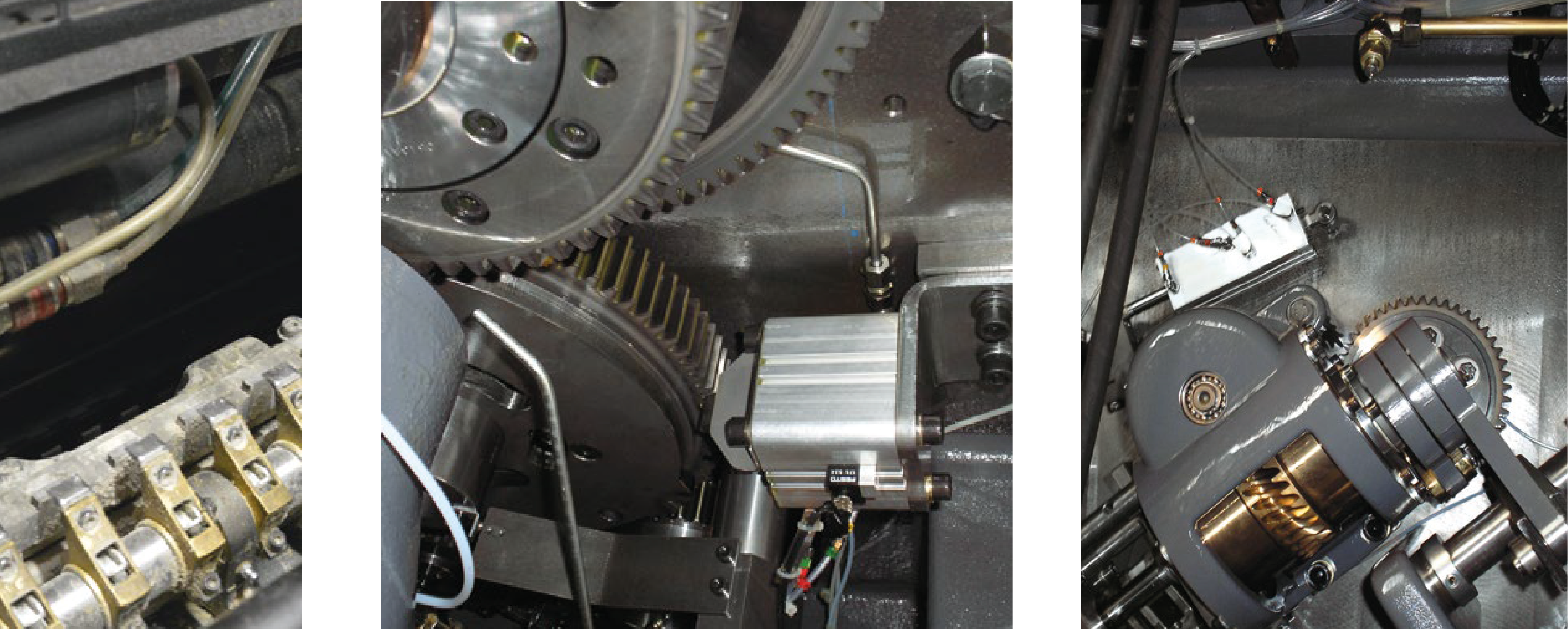

Gear-, circulating- and chain oils, oils for pumps and compressors
Mineral Oils
Name | ISO VG | Application | Characteristics / Note |
LFC 1068 (a) | 68 | CLP circulating and gear oil, chain oil | Greatest wear protection, long-life oil (a) Komori, manroland (Sheetfed & web) (b) KBA Sheetfed, manroland (Sheetfed & web) (c) Heidelberger Druckmaschinen (d) BOBST |
LFC 1100 (b) | 100 | ||
LFC 1150 (c) | 150 | ||
LFC 1220 (d) | 220 |
Other viscosities on request. Choice of viscosity as per machine handbook.
Mineral Oils With Adhesive Additive
Name | ISO VG | Application | Characteristics / Note |
LFC 1068H (e) | 68 | circulating oil, oil for guides and chains | High level of adhesiveness, high level of wear protection (e) chain lubrication BOBST (f) chain lubrication KOMORI (g) chain lubrication KBA Sheetfed |
LFC 1100H | 100 | ||
LFC 1150H | 150 | ||
LFC 1220H (f) | 220 | ||
LFC 1460H (g) | 460 |
Other viscosities on request. Choice of viscosity as per machine handbook.
Medical white oils with NSF H1 Registration
Name | ISO VG | Application | Characteristics / Note | |
LFC 34068 (h) | 68 | CLP circulation and gear oil, chain oil | Highest level of wear protection in continuous use. For food and pharmaceutical packaging. (h) Komori, manroland Sheetfed (i) KBA Sheetfed, manroland Sheetfed (j) Heidelberger Druckmaschinen (k) BOBST | |
LFC 34100 (i) | 100 | |||
LFC 34150 (j) | 150 | |||
LFC 34220 (k) | 220 |
Other viscosities on request. Choice of viscosity as per machine handbook.

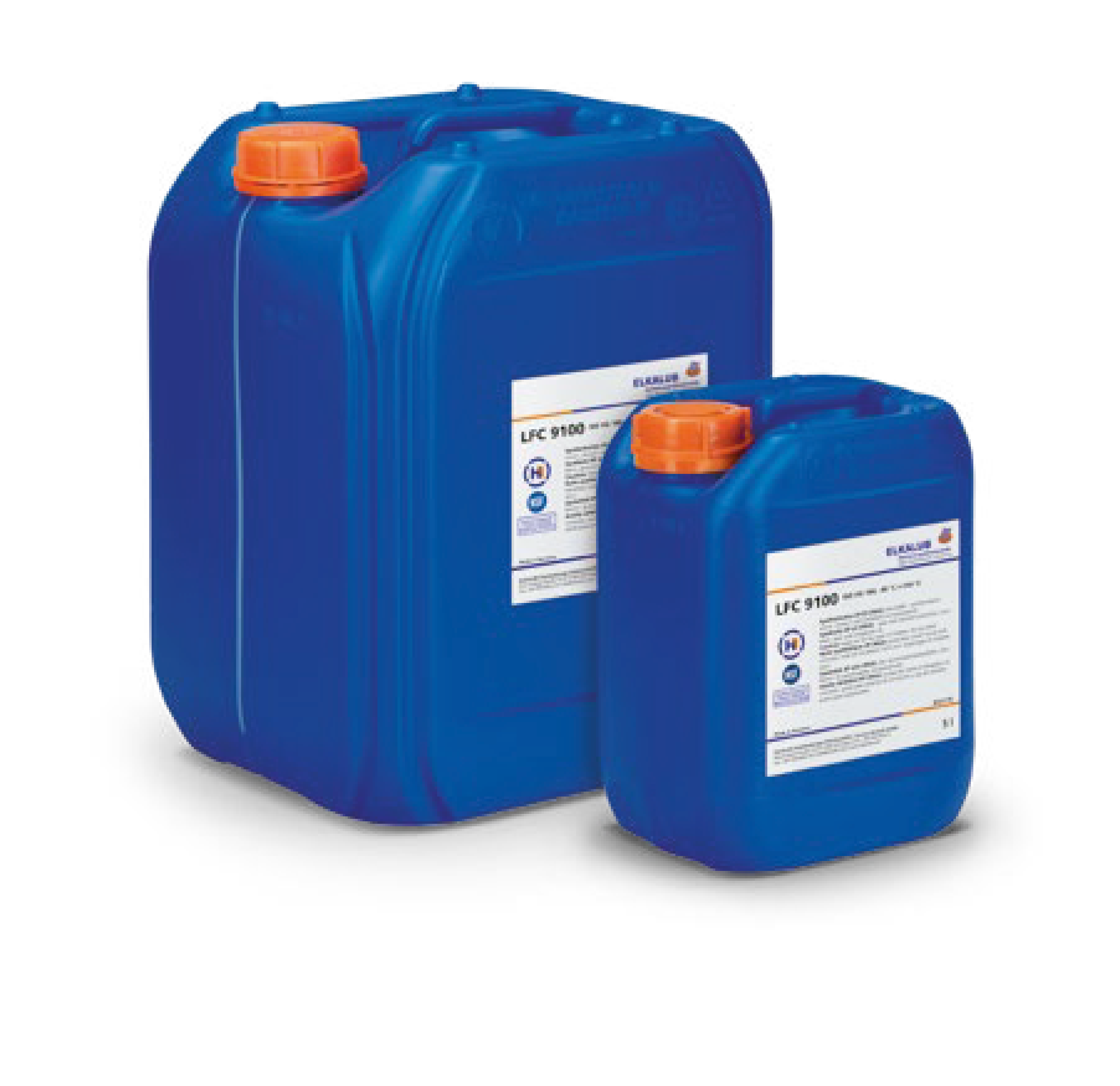

Polyalphaolefin oils with NSF H1 Registration
Name | ISO VG | Application | Characteristics / Note | |
LFC 9032 | 32 | Pump and compressor oil, gear oil | Fully synthetic oil for high temperature applications. For pumps and compressors (e.g.: Kaeser, Atlas-Copco, Airstar, Rietschle, Boge, Denver-Gardner). Can be mixed with mineral oils. | |
LFC 9046 | 46 | |||
LFC 9068 | 68 | |||
LFC 9100 | 100 | |||
LFC 9150 | 150 | |||
LFC 9220 | 220 | |||
LFC 9320 | 320 |
Other viscosities on request. Choice of viscosity as per machine handbook.
